75 μm pixel pitch

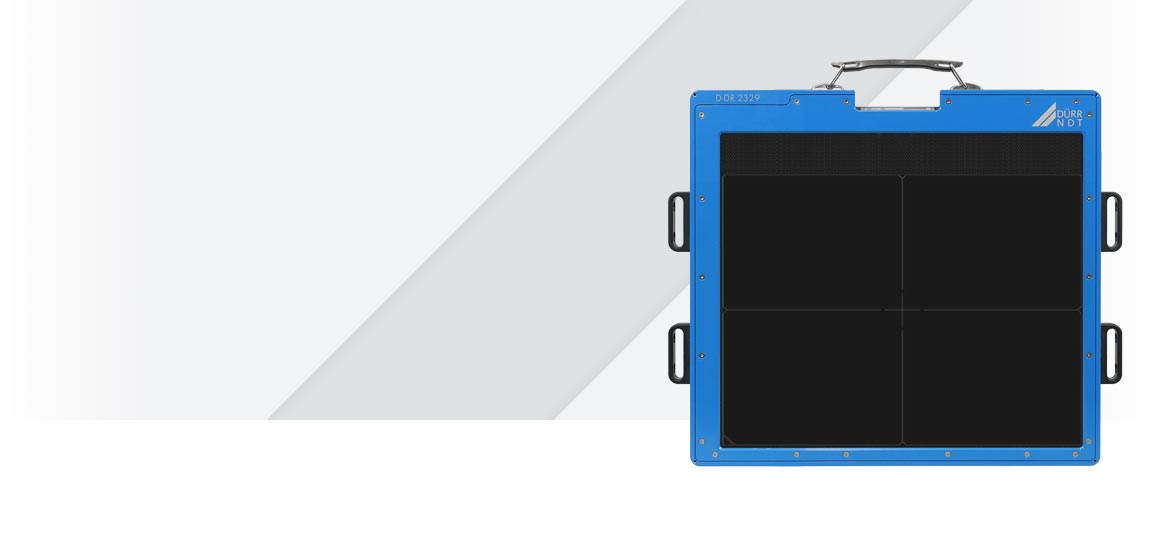

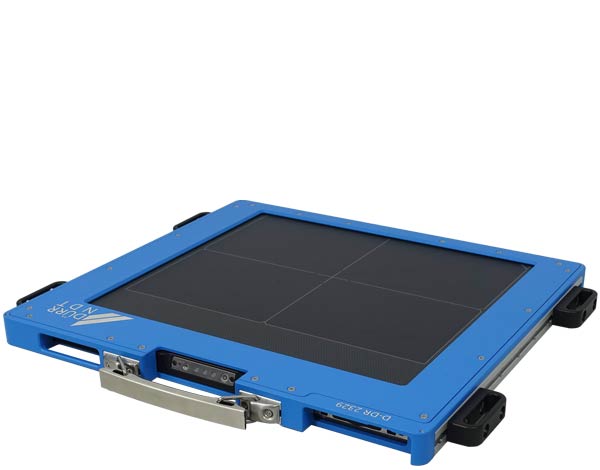

D-DR 2329 NDT
Medium size high-resolution digital detector array (DDA) designed for portability and the harsh conditions of industrial radiography. The best choice for universal use.
High-resolution
Dust-tight & waterproof
Protection level IP67
Lightweight & ruggedized
4.7 kg / 70 cm drop test pass
| Technical data | D-DR 2329 NDT |
| Active area | 230 mm x 288 mm (9.05" x 11.33") |
| Dimensions detector / incl. housing (H x W x D) |
322 mm × 355 mm × 17 mm 391 mm x 473 mm x 27 mm |
| Weight detector / incl. housing |
3.4 kg (7.5 lbs) 4.7 kg (10.3 lbs) |
| Number of pixels | 3072 x 3840 |
| Frame time | 3 s to 180 s |
| Image transfer time (wired/wireless) |
2 s / 3 s |
| Maximum energy | 450 kV (for long life in typical applications), Isotopes (with typical in-field usage) |
| Pixel pitch | 75 μm |
| Maximum SRb | 80 μm |
| Scintillator | GOS Ultra-Fine |
| ADC | 16-bit |
| Interface | Gigabit Ethernet, WLAN: 2.4 GHz (802.11n) / 5 GHz (802.11ac) |
| Battery | 2 x Lithium-ion (7.6 V, 23.6 Wh) |
| Operating conditions | -20 to 50°C (-4 to 122°F), 10 to 90 % humidity |
| Protection level | IP67 (dust-tight and waterproof) |
| Software | DÜRR NDT D-Tect X |

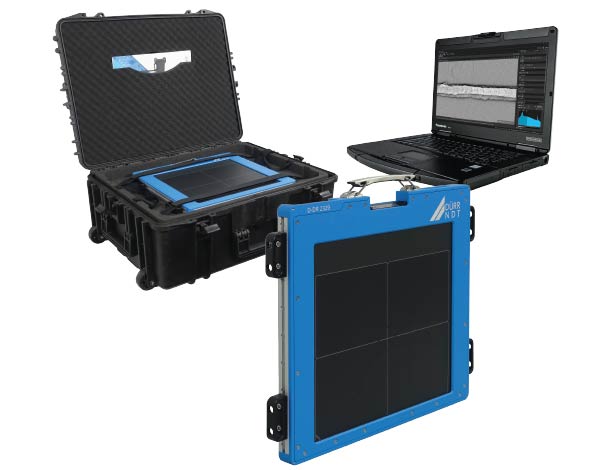

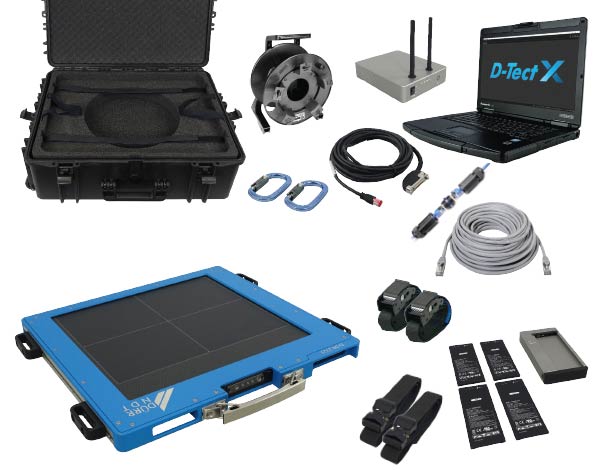

| Scope of supply | Housing, 4 batteries, battery charger, Ethernet adapter cable |
Accessories
Transport Case
Waterproof hard case for safe transportation with retractable handle and wheels. Provides space for detector, accessories and notebook.
System Control Unit (SCU) mini
Optional access point for wired power supply to the detectors and transmission of the exposure signal (if supported by X-ray generator).
CP120B/CP160B X-ray Generator
Portable X-ray generators with a constant potential output of 120 kV/160 kV. Available exclusively in a bundle with an X-ray imaging device and software.
