76 μm pixel pitch

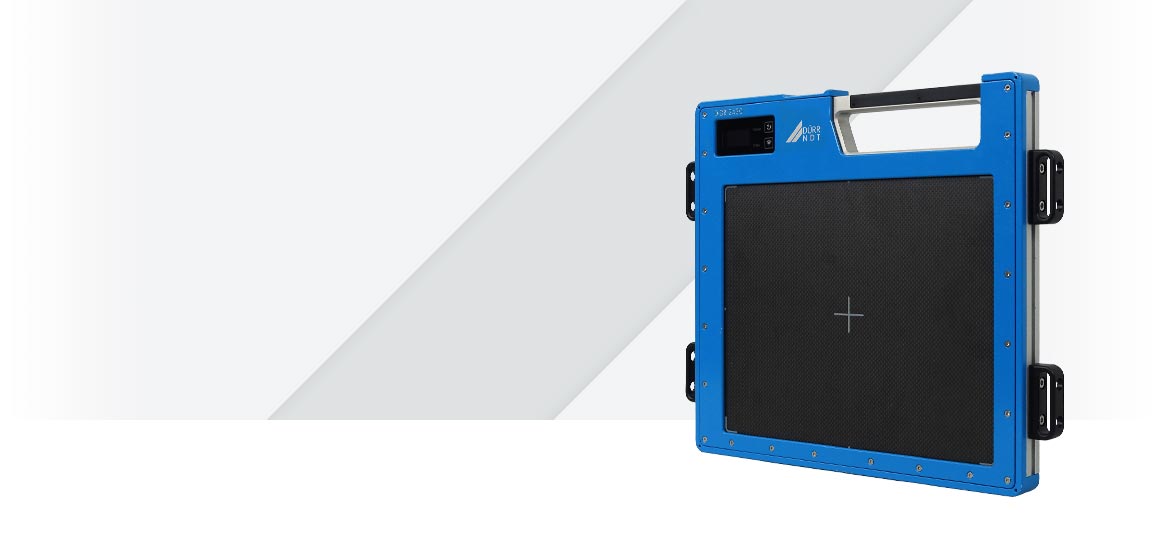

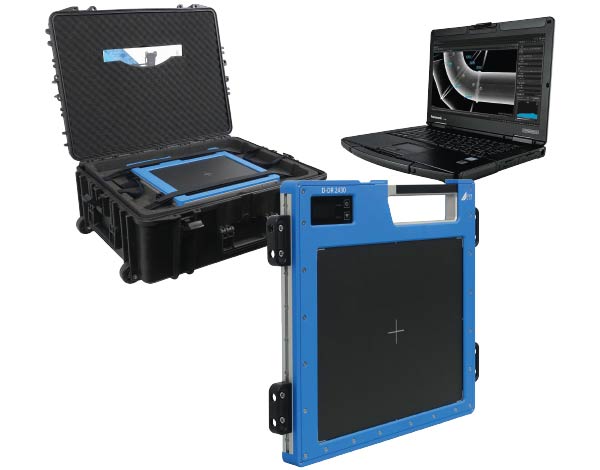

D-DR 2430 NDT
Medium size high-resolution digital detector array (DDA designed for portability and the harsh conditions of industrial radiography. The best choice for universal use with gamma sources. Available in two housing variants.
High-resolution
Dust-tight & waterproof
Protection level IP67
Lightweight & ruggedized
4.5 kg / 1 m drop test pass
| Technical data | D-DR 2430 NDT |
| Active area | 233 mm x 291 mm (9.2" x 11.5") |
| Dimensions detector / incl. polyamide (PA) housing / incl. aluminum (AL) housing (H x W x D) |
368 mm x 327 mm x 21.5 mm 435 mm x 343 mm x 30 mm 342 mm x 400 mm x 27 mm |
| Weight detector / incl. polyamide (PA) housing / incl. aluminum (AL) housing |
3.2 kg (7 lbs) 4.5 kg (9.9 lbs) 5.2 kg (11.5 lbs) |
| Number of pixels | 3072 x 3840 |
| Frame time | 0.5 s to 180 s |
| Image transfer time (wired/wireless) |
2 s / 4 s |
| Maximum energy | 350 kV (for long life in typical applications), Isotopes (with typical in-field usage) |
| Pixel pitch | 76 μm |
| Maximum SRb | 130 μm |
| Scintillator | GOS Plus |
| ADC | 16-bit |
| Interface | Gigabit Ethernet, WLAN: 2.4 GHz (802.11abgn) / 5 GHz (802.11ac) |
| Battery | Lithium-ion (7.4 V, 29.6 Wh) |
| Operating conditions | 0 to 45°C (32 to 113°F), 30 to 85 % humidity |
| Protection level | IP67 (dust-tight and waterproof) |
| Software | DÜRR NDT D-Tect X |

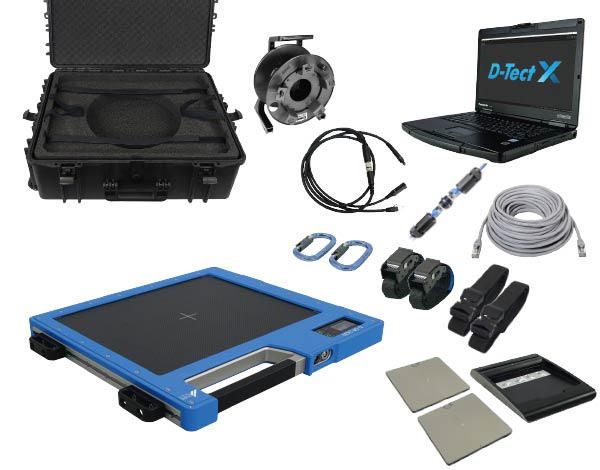

| Scope of supply | Housing, 2 batteries, battery charger, Ethernet adapter cable |
Accessories

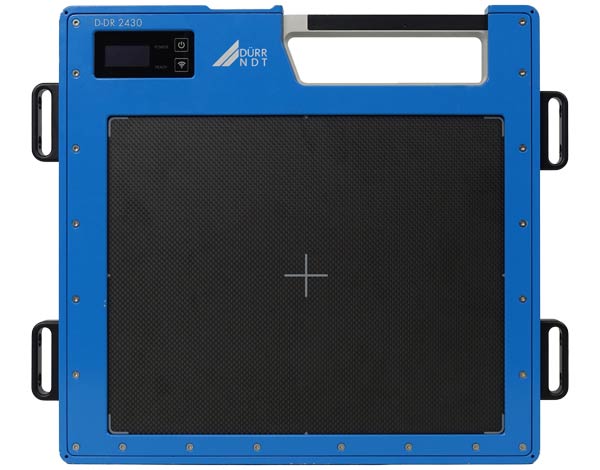

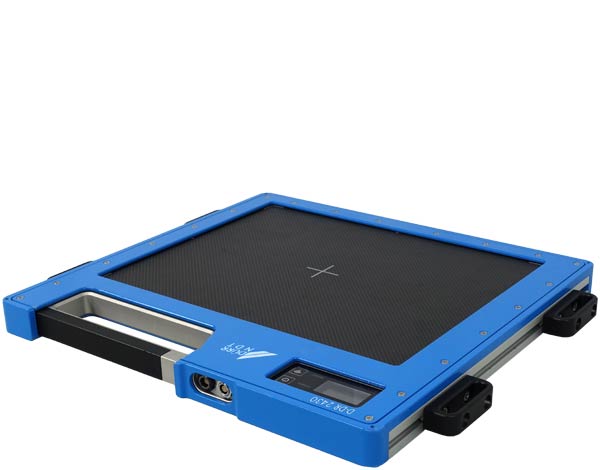

Aluminum Housing
Optional variant with aluminium housing, extremely compact with adjustable mounting brackets and holes for a VESA mount (100 x 100).

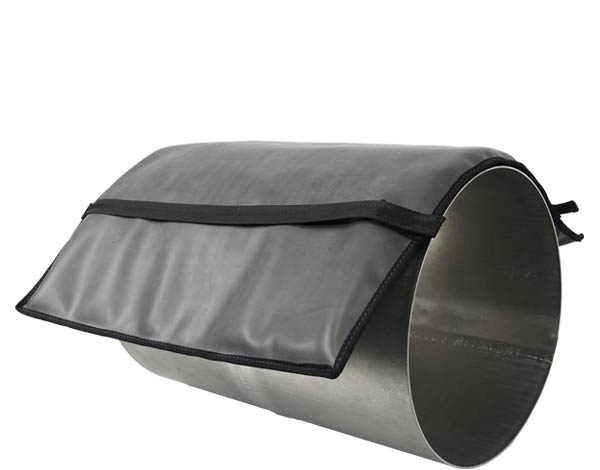

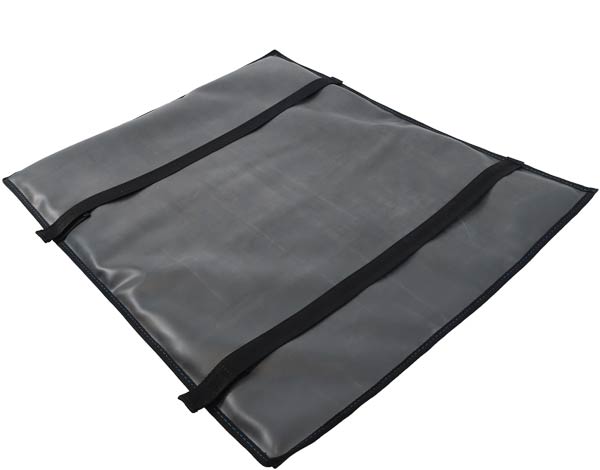

Heat Isolation Mat
Heat isolation mat (60 x 52 cm), suitable for temperatures up to 250 °C, e.g. for radiographic testing of pipes during operation.
Transport Case
Waterproof hard case for safe transportation with retractable handle and wheels. Provides space for detector, accessories and notebook.
CP120B/CP160B X-ray Generator
Portable X-ray generators with a constant potential output of 120 kV/160 kV. Available exclusively in a bundle with an X-ray imaging device and software.
Download brochure

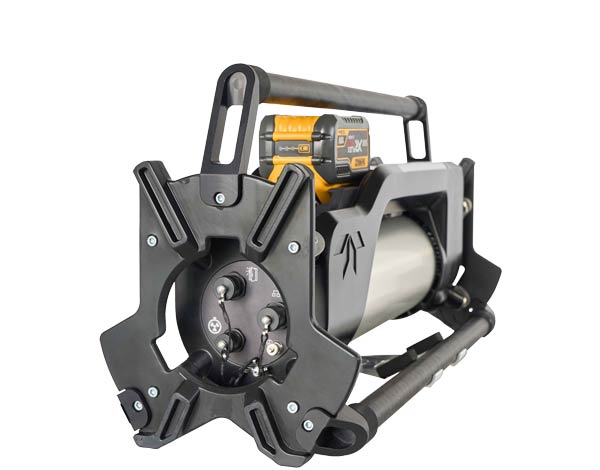

CP200B X-ray Generator
Portable X-ray generator with a constant potential output of 200 kV.
Download brochure
