High sensitive GOS scintillator

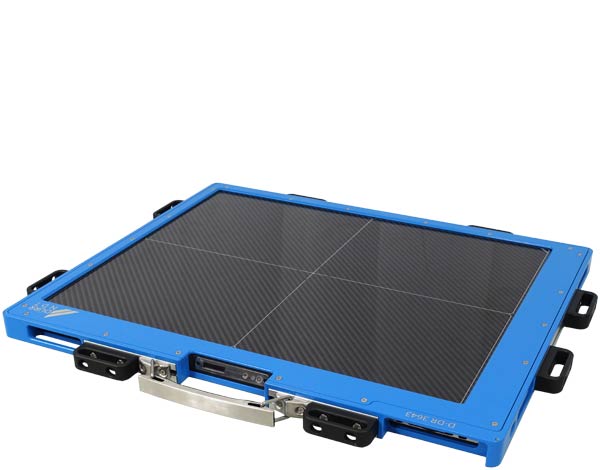

D-DR 3643 NDT
Large size flat panel detector / digital detector array (DDA) designed for portability and the harsh conditions of industrial radiography. Perfectly suited for profile images and large objects
High contrast
Large format
35 x 43 cm active area, perfect for profile images
Portable & ruggedized
6.1 kg / 1 m drop test pass
| Technical data | D-DR 3643 NDT |
| Active area | 351 mm x 427 mm (13.8" x 16.8") |
| Dimensions detector / incl. housing (H x W x D) |
384 mm × 460 mm × 15 mm 470 mm x 602 mm x 25 mm |
| Weight detector / incl. housing |
4.1 kg (9 lbs) 6.1 kg (13.4 lbs) |
| Number of pixels | 3548 x 4316 |
| Frame time | 0.5 s to 180 s |
| Image transfer time (wired/wireless) |
3.5 s / 5 s |
| Maximum energy | 450 kV (for long life in typical applications), Isotopes (with typical in-field usage) |
| Pixel pitch | 99 μm |
| Maximum SRb | 100 μm (Fine), 130 μm (Standard), 160 μm (Plus) |
| Scintillator options | GOS Fine, GOS Standard, GOS Plus |
| ADC | 16-bit |
| Interface | Gigabit Ethernet, WLAN: 2.4 GHz (802.11n) / 5 GHz (802.11ac) |
| Battery | 2 x Lithium-ion (11.55 V, 39.3 Wh) |
| Operating conditions | 20 to 50°C (-4 to 122°F), 10 to 90 % humidity |
| Protection level | IP67 (dust-tight and waterproof) |
| Software | DÜRR NDT D-Tect X |

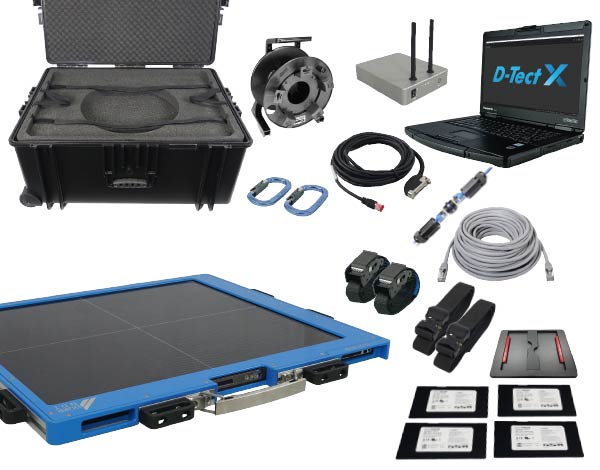

| Scope of supply | Housing, 4 batteries, battery charger, Ethernet adapter cable |
Accessories

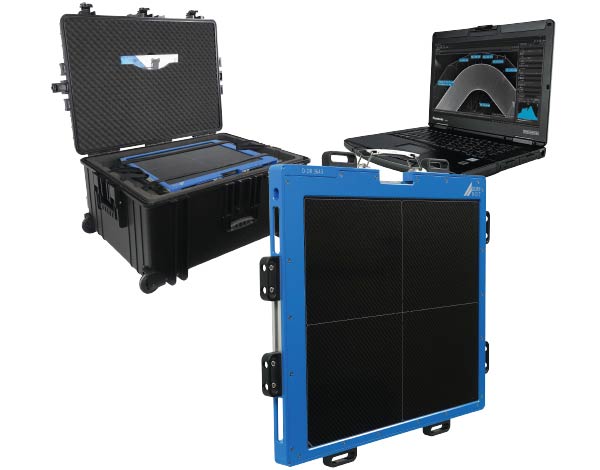

Transport Case
Waterproof hard case for safe transportation with retractable handle and wheels. Provides space for detector, accessories and notebook.
System Control Unit (SCU) mini
Optional access point for wired power supply to the detectors and transmission of the exposure signal (if supported by X-ray generator).
CP120B/CP160B X-ray Generator
Portable X-ray generators with a constant potential output of 120 kV/160 kV. Available exclusively in a bundle with an X-ray imaging device and software.
